2023 Design 2+2/4+2 Seats Golf Carts Specification
Electrical systemControllerENPOWER brandBattery60V 150AH lithium iron phosphate batteryMotor4KW/5KWChargerCar Built-in smart chargerCharge time8-10hours（Discharge rate 80%）Charging input voltage110-220VTechnical ParametersMax speed45km/hMax Gradeability20%Braking distance≤5mMinimum tu
Product Introduction
Electrical system | Controller | ENPOWER brand |  | |
Battery | 60V 150AH lithium iron phosphate battery | |||
Motor | 4KW/5KW | |||
Charger | Car Built-in smart charger | |||
Charge time | 8-10 hours（Discharge rate 80%） | |||
Charging input voltage | 110-220V | |||
Technical Parameters | Max speed | 45km/h | ||
Max Gradeability | 20% | Braking distance | ≤5m | |
Minimum turning radius (m) | 5m | Min. ground clearance (mm) | 150mm | |
Overall dimensions (mm) | 2900（3200)*1280*2100 | Driving Mileage | 100-120km | |
Wheel base(mm) | 1720 | Passenger | 4 | |
Wheel track ( mm) | 900/1000 | Curb weight（kg） | 470kg | |
Body system | Seats | Row seats ( high rebound PU leather fabric) | ||
Body | Steel frame +Injection molded housing+ABS engineering plastic molding parts | |||
Roof | Injection molded roof | |||

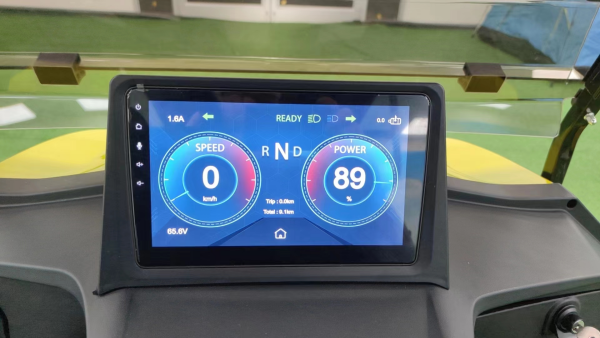

Meter | Embeded Dashboard | |||
Rearview mirror | Rear view mirror with turn signal | |||
Light & Signal | LED DRL(Daytime Running Light),Combined headlights, turn signals, combined rear lights, electric horn and reversing buzzer,horn ,speaker
| |||
Switch | Emergency flasher，启动开关Start switch、lights、Forward/reverse gear switch | |||
Frame | Anti-rust paint treatment of steel structure overall frame | |||

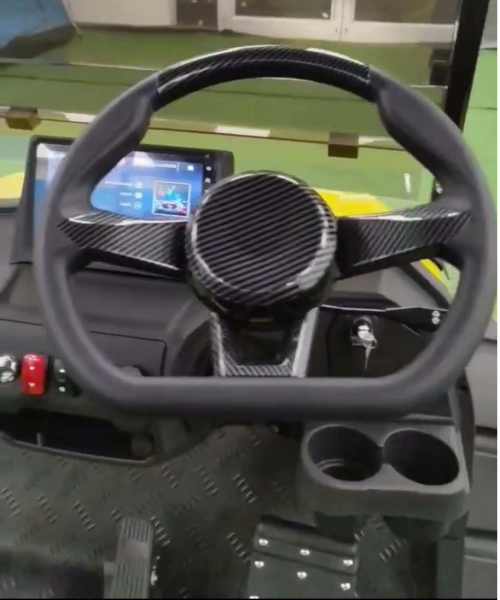

Steering wheel | Polyurethane foam steering wheel | |||
Chassis system | Motion transfer system | CVT | ||
Steering system | Rack and pinion type steering machine | |||
Front Suspension | Front independent suspension | |||
Rear Suspension | rear suspension+High Strength Leaf Spring+Barrel damping | |||
Brake system | Four-wheel disc brake hydraulic brake、Dual circuit hydraulic brake、parking brake | |||
Tyre | 23*10.5-12/14 Tubeless+Aluminum alloy rims | |||
Others | Cup holders、Golves boxes、Roof handrail | |||
Loading Qty 40HQ | 4seats: 20UNITS or 12 units 6 seats +4 units 4 seats | |||
