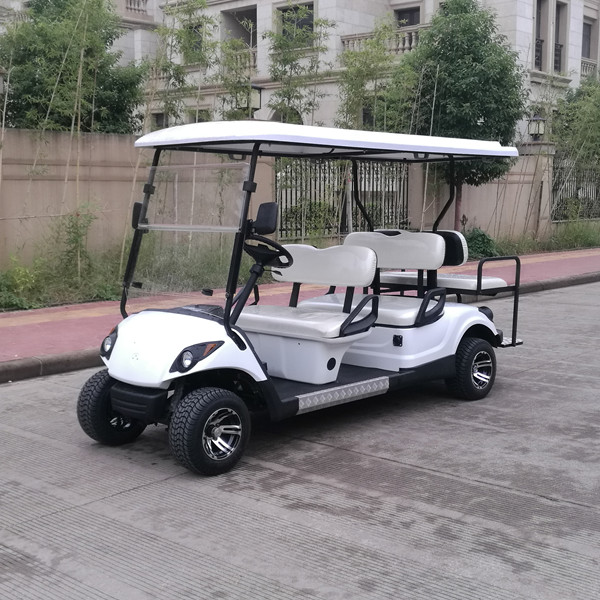

4+2 Seaters On Road Gasoline Powered Golf Carts

4+2 seaters on road Gasoline powered golf carts

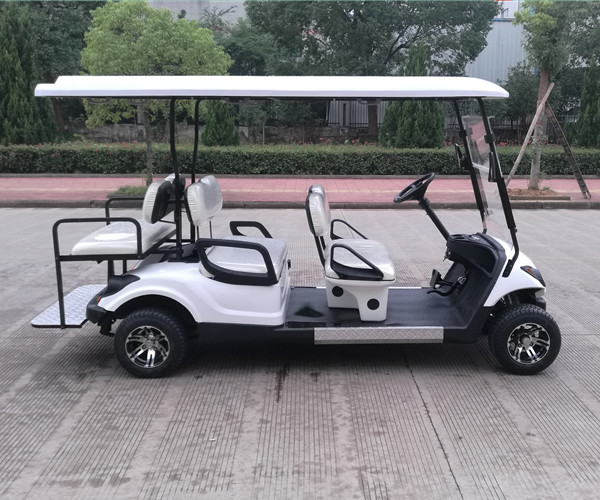

                Some pictures for reference

Detailed Specification

Item Number:

MCGF-G4-2S

Brand:

OEM or MICO

Condition:

Brand new that produce out only after order placed

Type:

E and Y type  (same prices)

Engine system

Engine Model:

175MN

Displament:

300CC

Engine Type:

Single cylinder, vertical,4- stroke, water cool, sohc-4 walve

Max power(Kw/Rmp):

19KW/6500rmp

Max Torque(N.m/Rmp):

26N.m/6500

Compression ratio:

10:01

Start battery:

12v/12ah dry battery

Transimission:

Shaft drive

Gear Shift:

CVT(F-N-R)

Start way:

CDI

Lubrication Type:

Pressure Splash

Transimission:

Shaft drive

Body System

Frame:

Welded steel with double coating

Color:

White color(Standard) ,Other colors add extra 151$

Windscreen:

Foldable Organic glass

Body:

Injection molding plastic with
Automotive paint and finish

Wheel track (front/rear):

840mm/985mm

Ground clearance:

127mm

Wheel base :

2390mm

Min.Turning Radius:

3650mm

Product size:

3480*1260*1710mm

Packing size:

3100x1260x1000mm

Curb weight:

450kgs

Suspension:

Front independented &Rear leaf spring

Brakes:

Rear hydraulic oil pressure brake and pedal park brake

Tires:

205/50-10 Tubeless with iron rim and aluminum hub cover(alloy rim add 105$)

Performance

Max load capacity:

800kgs

Braking distance:

≤4m

Fuel Tank:

13L

Max. slope of climb:

up to 35%(fully loaded)

Max. speed:

45KM/H

Range per full tank:

More than 300kms

Container Loading:

Packing:

Packing with iron frame(with wheels assembled and roof seat disassembled)

Container Loading:

 20GP(4pcs) ,40GP(12pcs),40HQ(18pcs)

Combination Switch:

Combination switch of Turnning lights,head lights and horn.

electronic systems:

Turnning signals,head lights,rear lights,brake nights,night rear lights,horn,battery level indicator,forward&reverse switch,electric locker

                                               FOB  Prices(For 300cc Shaft standard)

                          USD6,250

For The prices of other quantity,please contact with us freely!  (without lights reduce 60usd)

We are jinghang factory with more than 20 years specialized in the design and production of golf carts,classic cars,sightseeing cars, with both gas and electric power, our factory create golf carts in 2005 in china, our technology very mature through many years' development, we pay much attention on the good quality, affordable&competitive prices,fast delivery, and good factory direct after sale service.

      Some more Extra Options

Rain cover(151$)     Cart cover( 151$)     USB music player (75$)         galvanzied frame(251$)    Sunshade(151$)        rear handle bar(45$)        rear golf  bag holder(85$)     rear flip seat(90$)        4 wheel  brake(95$)          seats belt(72$)           rain wiper(55$)

                                                                          Other Details

Production time:

1pcs(20 days), 12pcs(35 days)

Payment Method:

40% down payment to begin production, rest pay before delivery after production finished..

Shipping cost

please tell us your destination port and quantity

Warranty time:

two year for all parts

Free parts:

depend on quantity

Warranty informations

Warranty period: Two years for all parts
Warranty scope: for all damages or problems caused due to the products itself(except for human factor,improper application or maintenance according to the instruction book and unpredicatable disasters).
Warranty proceed way:
1, replacements for any parts that broken under warranty period and warranty scope are available from us freely by sending out within two days once confirmed, the express fees belowed 400rmb would be totaly beared by our side, for any exceeded amount over 400rmb would be beared by the buyer.

2,Technical supports would be provided by words,pictures and vedios within one day after got,almost all of the technical problems can be solved by this way, we have the liablity to offer the technical supports to any clients bought our items, this liablity don’t have a limited period.

3, If very necessary, we can send our technician to your address to solve the problems as long as the buyer will share all the fees caused by this trip including the salary.

             Packing way for LCL delivery

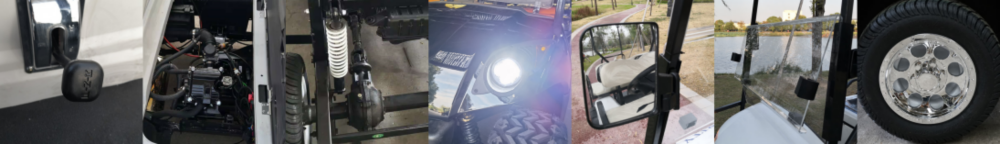

some standard features

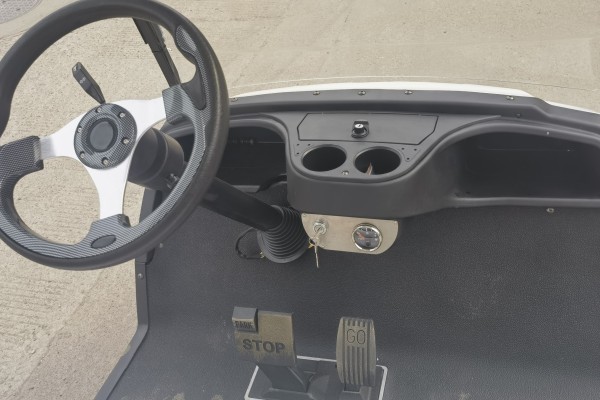

                               Dashboard

     CVT Gear       19kw durable engine       durable shaft drive        LED Head light       rear view mirror      foldable windshiled            hub cover
