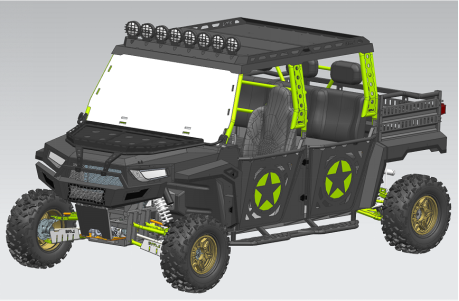

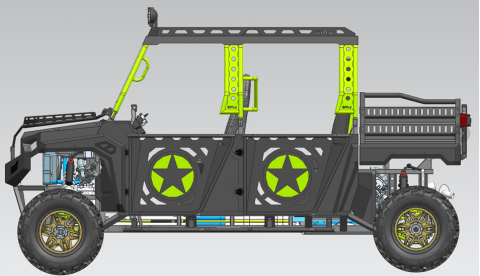

Quotation Of DW Beast 1000 EPS-4SEATER

picture 1

picture 2

picture 3

FOB(QINGDAO)

Colors Available

12800

Camouflage
Black
Red

DW Beast 1000 EPS-4SEATER  Features

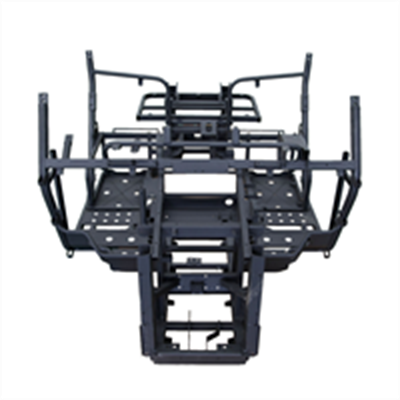

Electrophoretic Coating Frame and Body

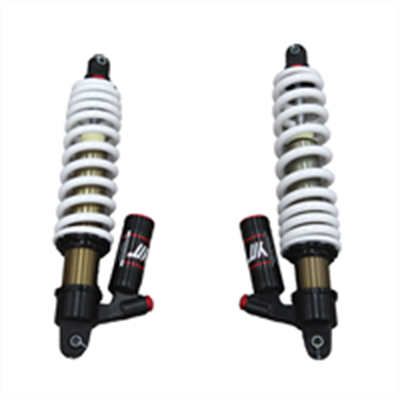

Adjustable Shock Absorber

3500 LBS Winch

Towing Hitch

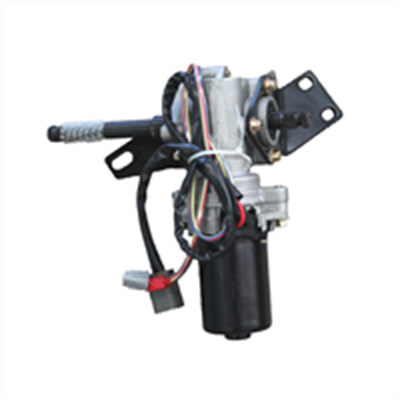

Electric Power Steering

CF V-twin Engine

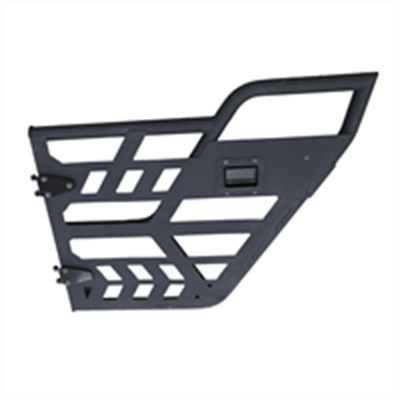

Metal Half Door

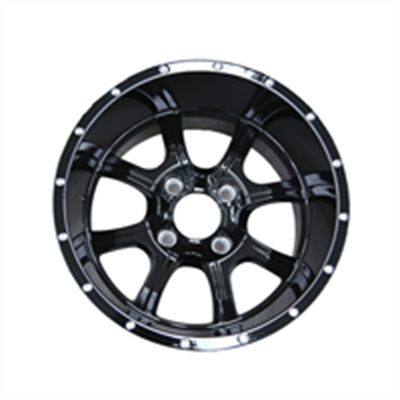

14 Inch Wheels Rim

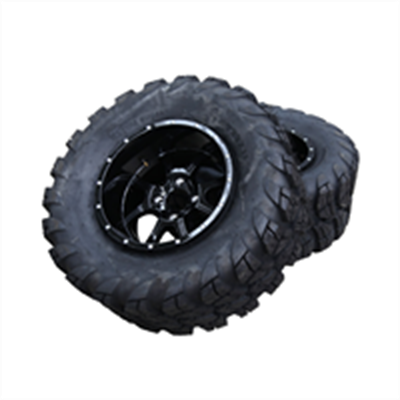

29 Inch Tires

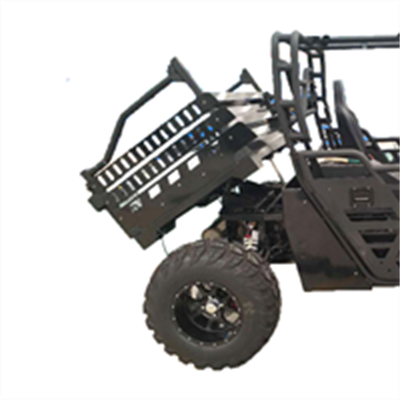

Electric Dump Bed

Optional Parts and Price

BEAST 1000 EPS

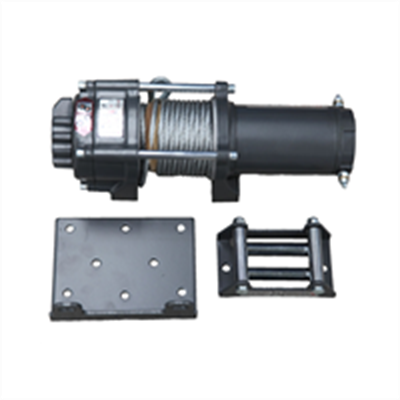

Winch

$100.00

Windshield

$50.00

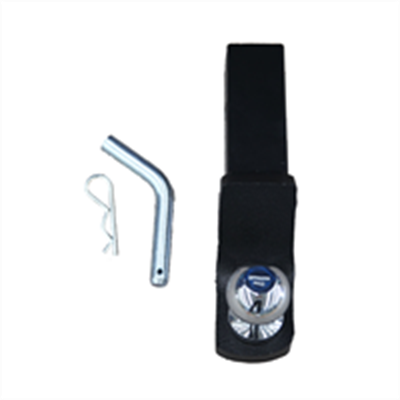

Rear hitch bar with towing ball

$40.00

Loading Infomation

40ft HQ Container

6Units

Packing Size

4000×1800×1290

Gross Weight

1030kg

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

996.6cc

Drive System

Shaft, Selectable 4x4, Front Differential Lock

Compression Ratio

10.5 : 1

Engine Type

V-twin , 4-Stroke , SOHC

Fuel System/Battery

DELPHI Electronic Fuel Injection

Max Power

63kw(81hp)/6500rpm

Max Torque

95N.m/5500rpm

Transmission

CVT L-H-N-R-P

Starting system

Electric start

EFI  ignition  EPA certification

Have

Dimensions

Overall Length×width×Height

3925 mm ×1900 mm ×2235mm

Cargo Box Dimensions

820 mm ×1480mm ×390mm  Dump 25°

Estimated Dry Weight

968 kg

Front/Rea Box Capacity

50kg/200kg

Fuel Capacity

30L

Wheelbase

2990 mm

Ground clearance

350 mm

Brakes

Front/Rear Barkes

4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers

Additional Spesifications

Cargo System

Electric dump bed

Doors

Metal Half Door

Lighting

4 D-series lights

Mirrors

Rear mirror

Roof

Metal Roof

Tires/Wheels

Electronic Power Steering

Standard

Front Tires

29×9-14

Rear Tires

29×11-14

Wheels

Cast Aluminum

Steering

Rack & pinion Steering

Suspension

Front Suspension

Dual A-arm

Rear Suspension

Dual A-arm with Stabilizer Bar
